Automatic Home/Garden Water Pump

GE-AW 1246 N FS

Item no: 4177020 EAN: 4006825642476
  • Water level indicator
  • Large water filling screw
  • Dirt indicator
  • Suction indicator
  • Flow sensor with LCD display
  • Dry-running protection
  • Brush protection
  • Frost protection via water drain plug
  • Pre-filter with non-return valve
  • Durable metal construction suction and pressure connections
  • Auxiliary second pressure connection
  • High-quality mechanical seals
  • Stainless-steel finish
See more information
Show less information
Total 256.95256.95 EUR*
Attention!

Currently, no orders can be placed in the online shop.

Please try again later or check your firewall/ad-blocker settings.

Automatic Home/Garden Water Pump
GE-AW 1246 N FS
Item no: 4177020 EAN: 4006825642476
  • Water level indicator
  • Large water filling screw
  • Dirt indicator
  • Suction indicator
  • Flow sensor with LCD display
  • Dry-running protection
  • Brush protection
  • Frost protection via water drain plug
  • Pre-filter with non-return valve
  • Durable metal construction suction and pressure connections
  • Auxiliary second pressure connection
  • High-quality mechanical seals
  • Stainless-steel finish
See more information
Show less information
einhell-expert-automatic-home-garden-water-pump-4177020-productimage-001
Article description

The Einhell automatic domestic water system GE-AW 1246 N FS for pumping clear water is a 1,200-watt solution offering convenient water supply. Instead of using tap water, the Einhell automatic domestic water system offers the advantage of making reservoirs, wells, boreholes or cisterns accessible for use around the home and the garden. The automatic domestic water pump with stainless-steel finish has convenient suction and water-level indicators, as well as large filling and drain plugs to make the pump frost-proof. A contamination gauge shows at a glance whether the filter is dirty. The flow sensor is equipped with an LCD display. Several safety mechanisms protect against damage to the equipment, including the dry-running protection, the scald protection, and a pre-filter with non-return valve. The high-quality inlet and pressure connections are of metal construction. In addition, the automatic domestic water pump has an auxiliary second pressure connection and high-quality mechanical seals.

See more information
Show less information

Technical details

Max. delivery height
50 m
Max. delivery pressure
5 bar
Max. delivery rate
4600 l/h
Max. suction height
8 m
Max. water temperature
35 °C
Power
1200 W
Power cable length
1.5 m
Pressure connection type
33,3 mm (R1 IG)
Product weight
11.4 Kg
Suction connection type
42 mm (R11/4 AG)

Innovative pump technology from Einhell:

Pumps up to 4600 litres of water per hour

The 1,200-watt automatic domestic water system pumps up to 4,600 litres of clear water per hour from a depth of up to 8 metres. A flow sensor monitors the water flow and indicates via status LEDs that the pump is working properly. The thermal overload protection automatically switches off the pump in the event of overheating. The dry-running protection and scald protection also deactivate the pump if water supply stops and the pump motor is at risk of overheating.

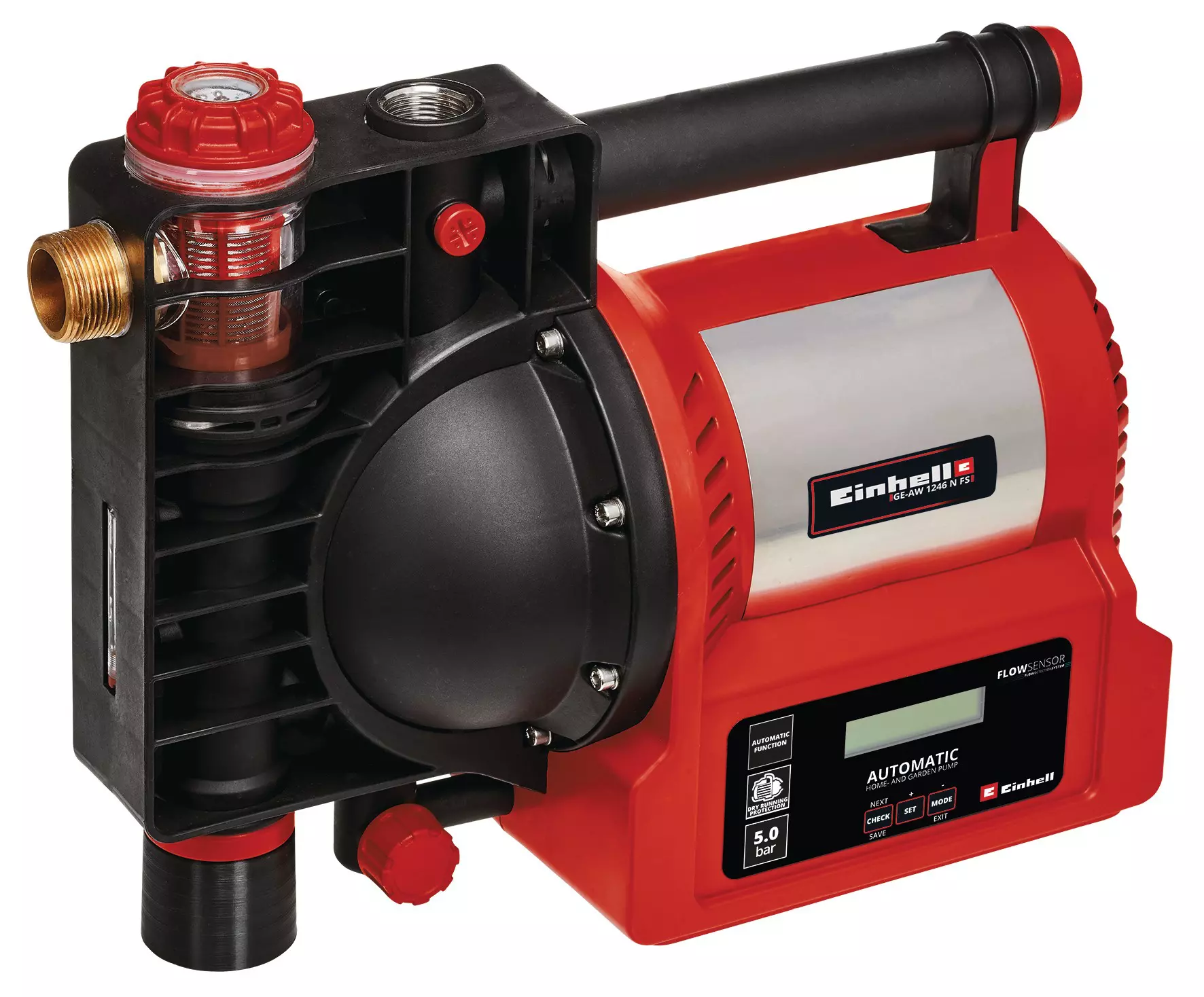

The Einhell automatic domestic water system GE-AW 1245 , featuring a red housing, silver lid, pre-filter and LCD display.

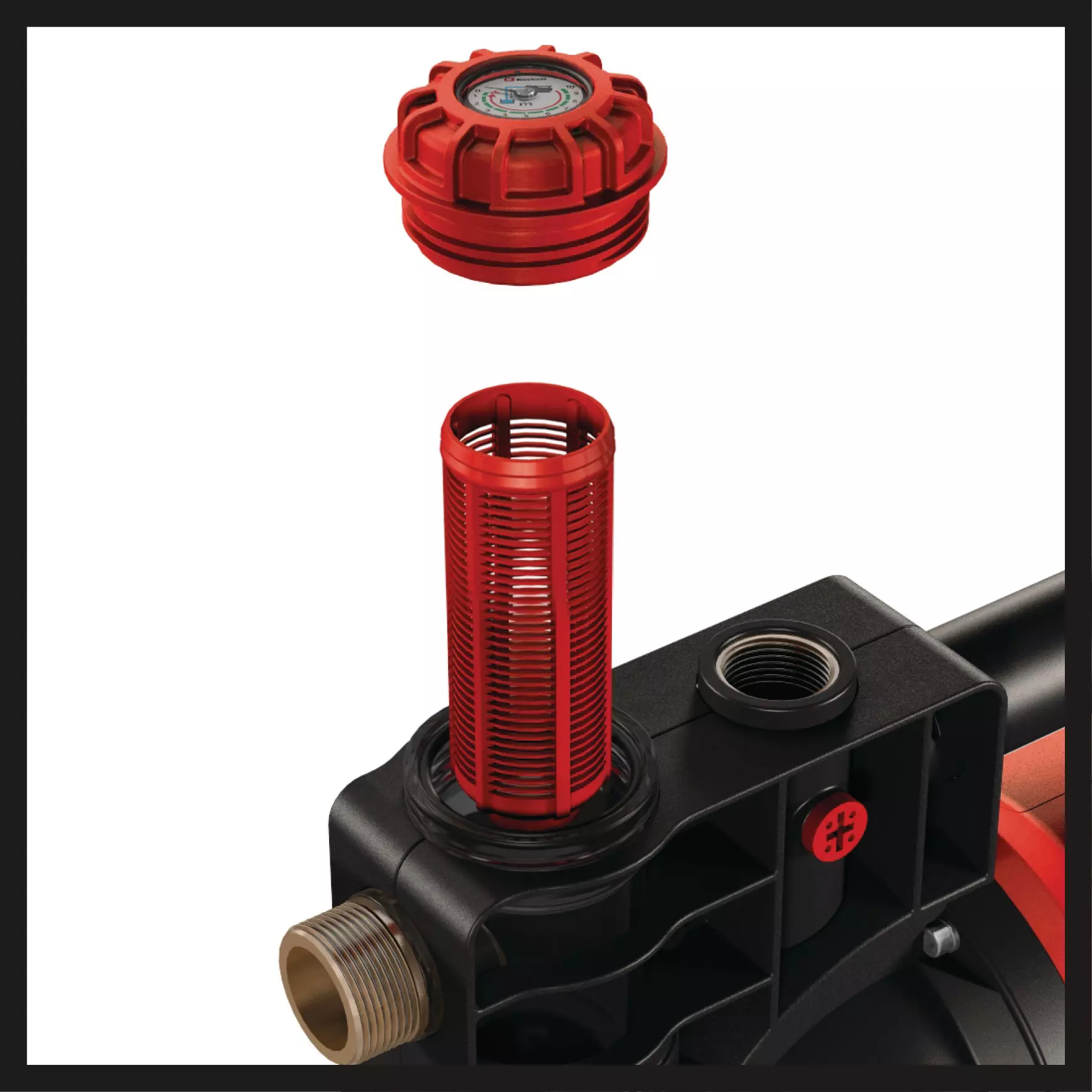

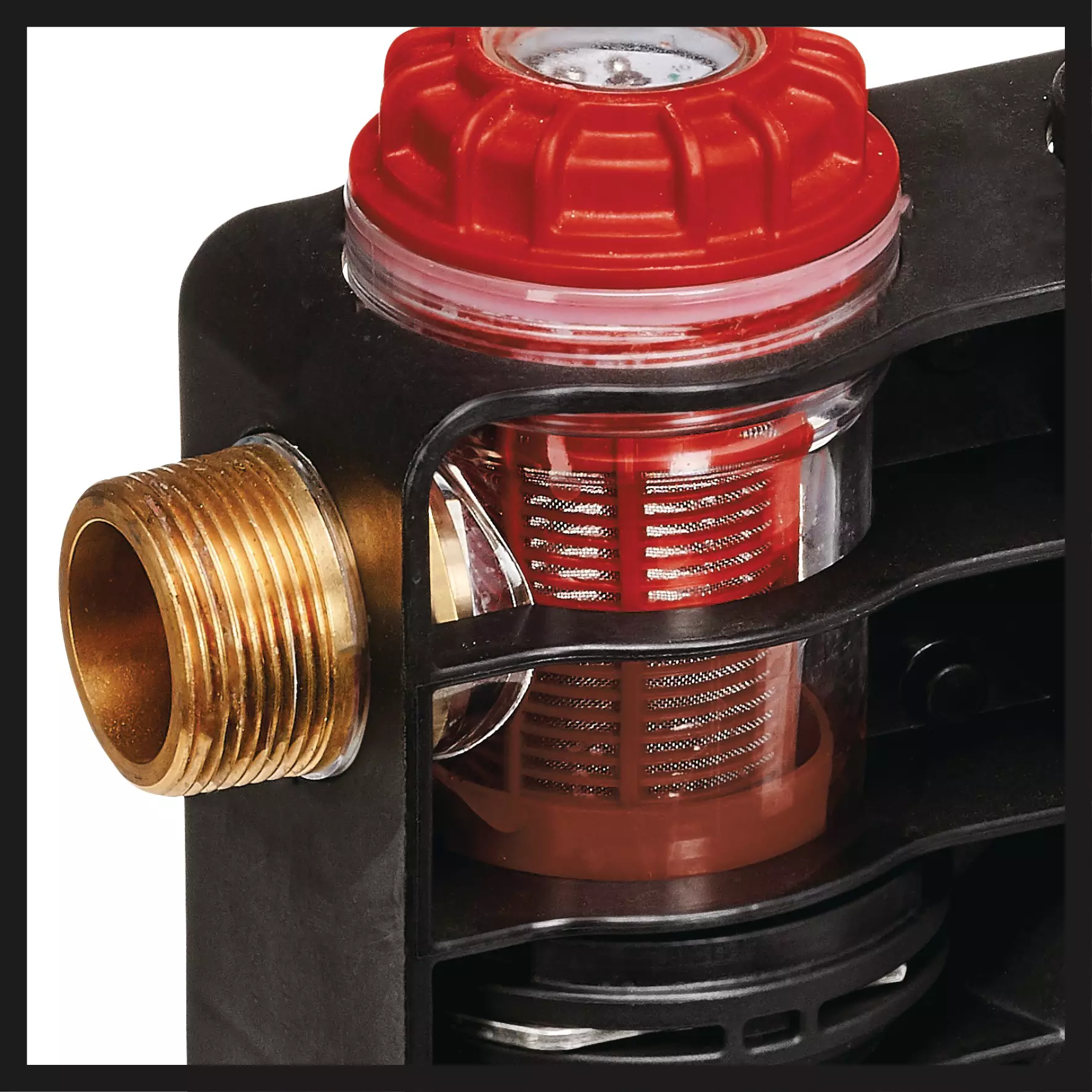

The pre-filter of the Einhell domestic water system GE-AW 1246 N FS with red screw cap and transparent housing.

Optimum protection

The integrated pre-filter with non-return valve protects the automatic domestic water system from contamination and dirt in the water.

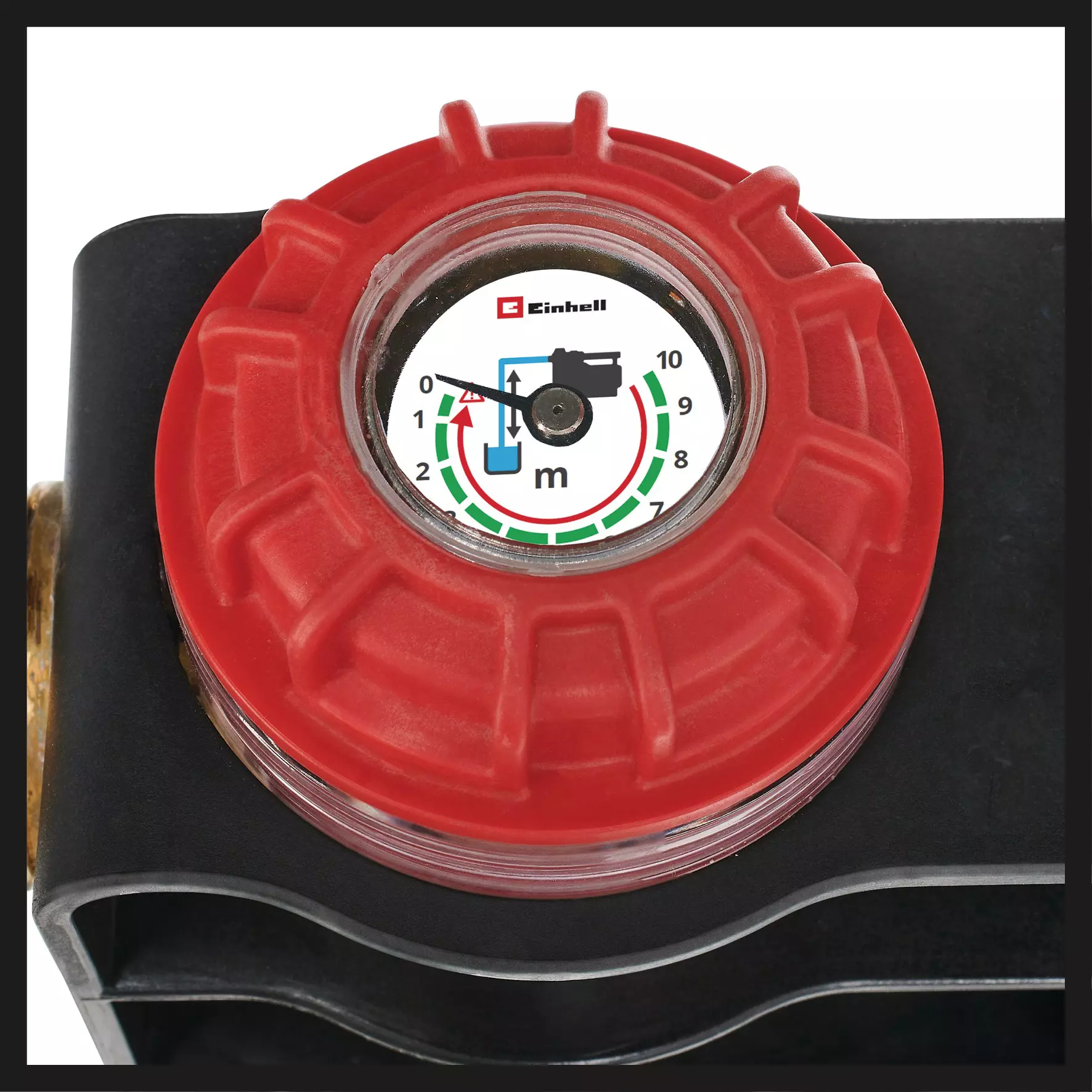

The suction gauge on the Einhell automatic domestic water system GE-AW 1246 N FS, located on the red cover, is used to monitor the suction vacuum.

Full control over status

The suction indicator provides information about intake height, pressure and intake issues. The dirt indicator detects contamination of the filter.

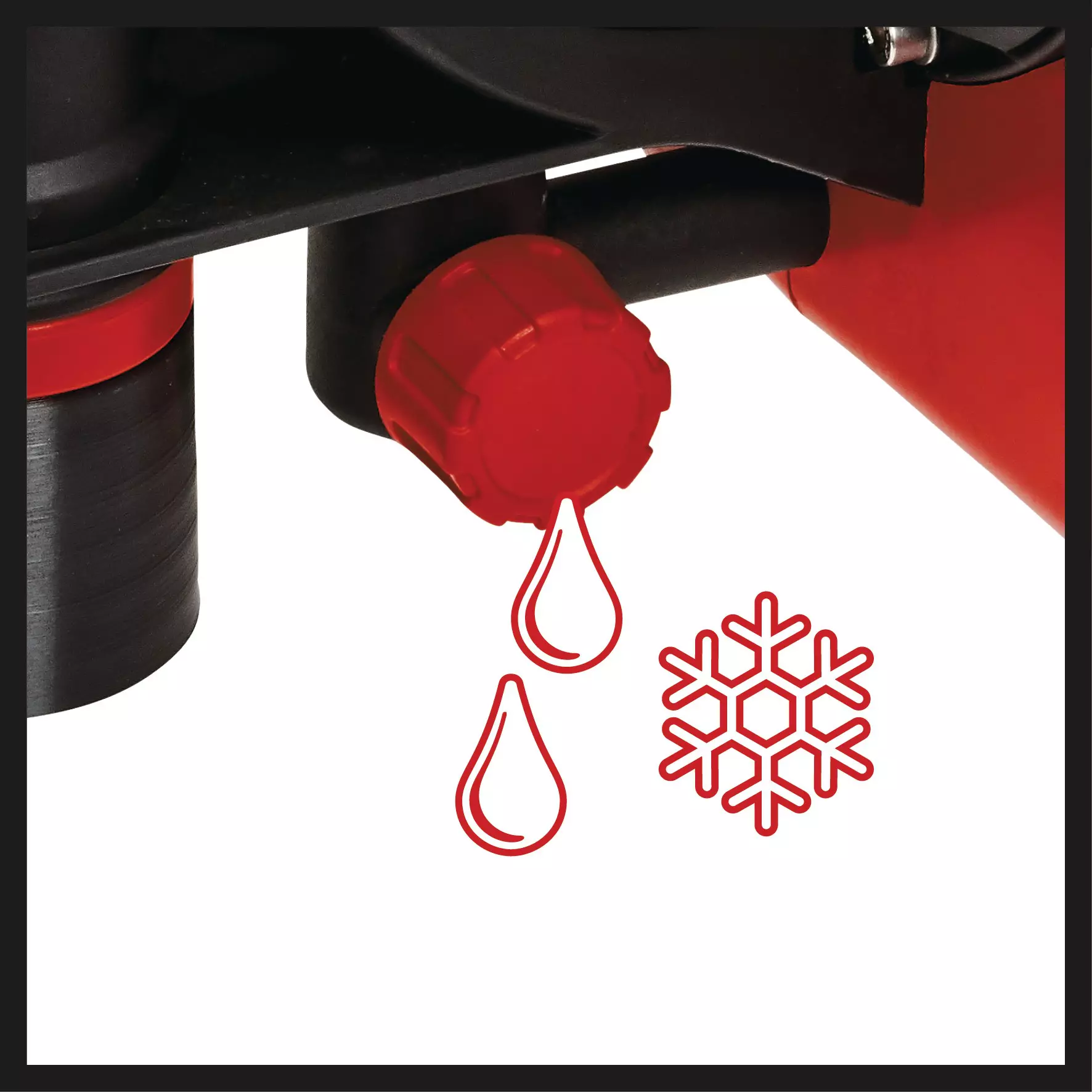

The drain plug on the Einhell automatic domestic water system GE-AW 1246 N FS, featuring a frost protection symbol denoting easy draining.

Frost protection

To avoid damage during the cold season, any residual water can be emptied easily via the water drain plug.

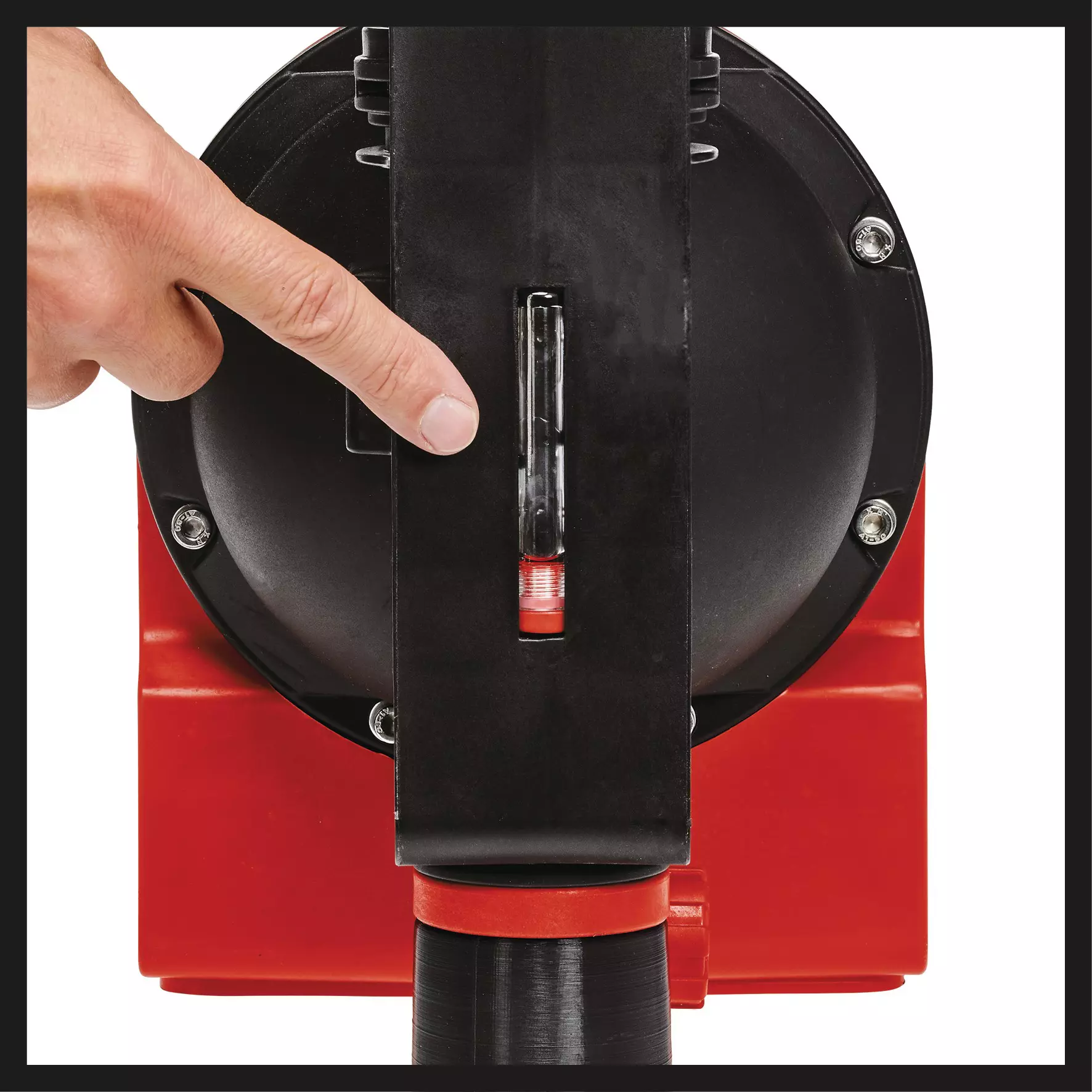

The water level indicator on the Einhell automatic domestic water system GE-AW 1246 N FS, featuring a level control for checking the water level.

Important note before starting

The automatic domestic water system must be filled with water before commissioning; thanks to the water level indicator, no more forgetting to refill.

Practical water systemSupplying water to your home and garden

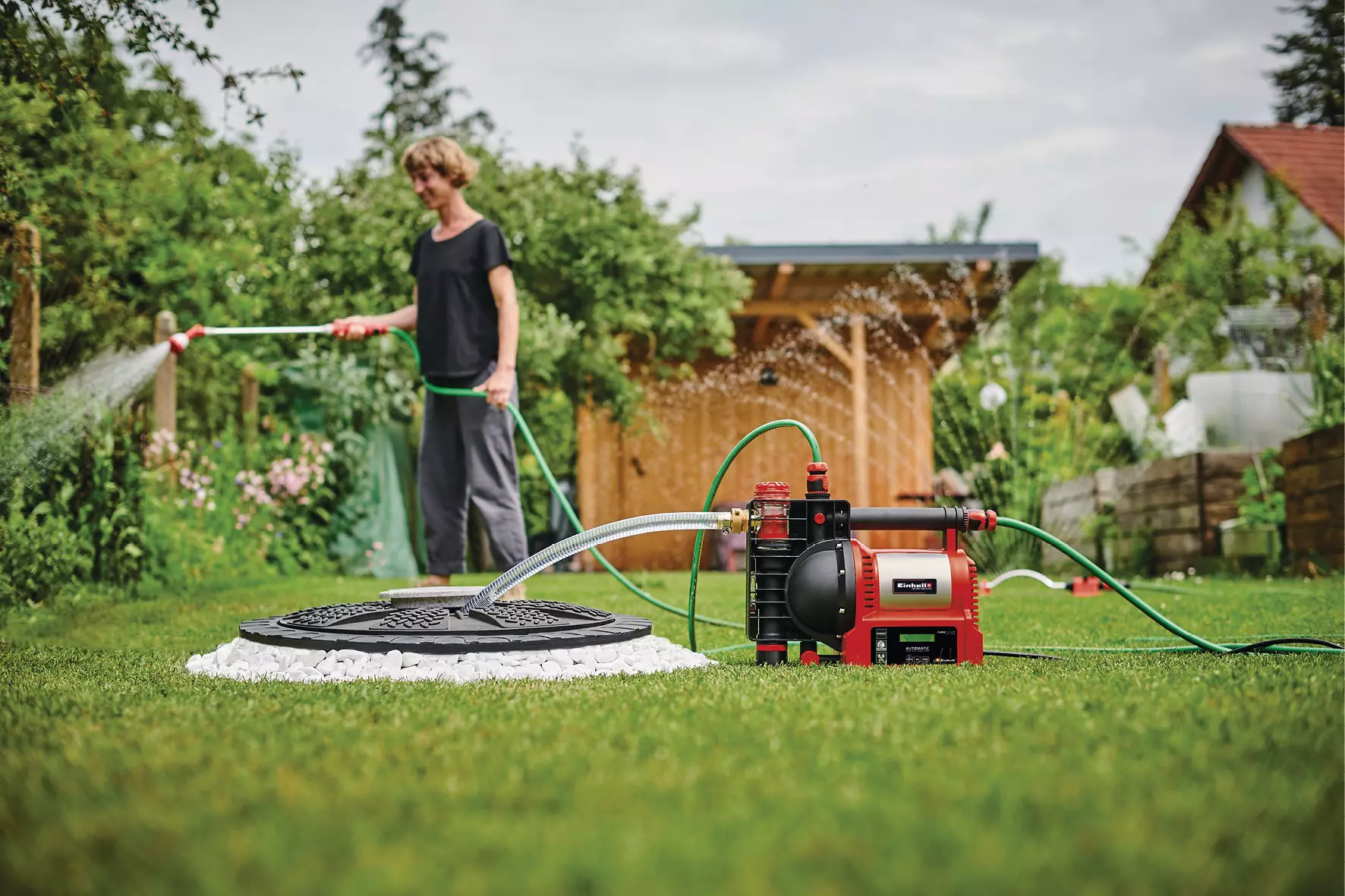

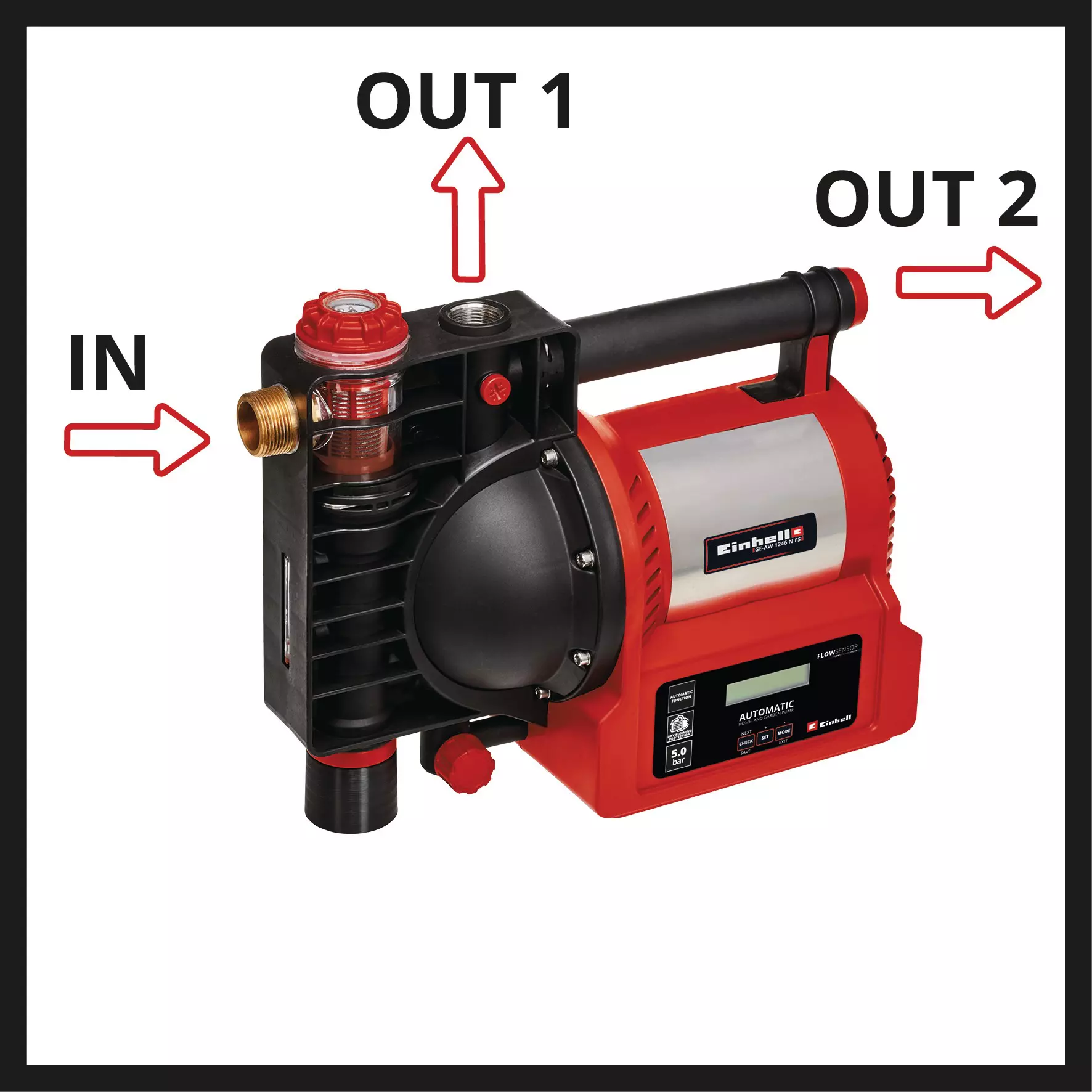

The automatic domestic water system GE-AW 1246 N FS can be used to supply water to your home and garden. Wells or ponds are used as the basis for irrigation. Thanks to two pressure connections, you can water plants and sprinkle the lawn at the same time.

What type of pump is it?

The automatic domestic waterworks is a surface pump, i.e. it is always located outside of the water and sucks in the water via a suction hose and then conveys it further via a pressure hose or garden hose.

What is the automatic domestic water system suitable for?

For watering (of plants and beds) in the garden or for automatic domestic water supply.

Can automatic domestic water systems also convey waste water?

No – automatic domestic waterworks are only suitable for conveying clear water.

What needs to be considered when installing the pump?

The pump must be filled with water before use. (Caution: Pre-filter must be removed for filling!) It is also advisable to apply sealing tape to the inlet connection.
