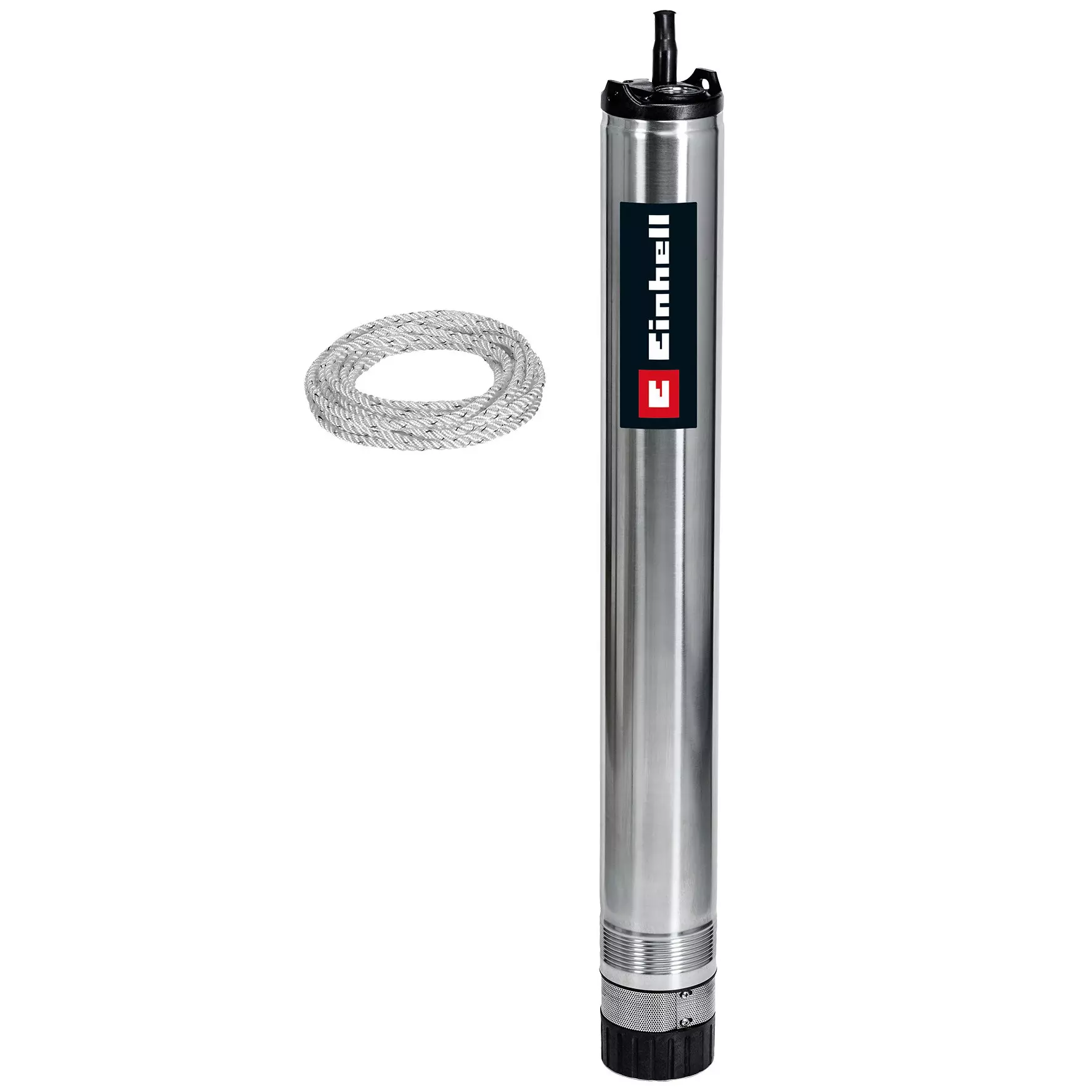

Deep Well Pump

GE-DW 1155 N-A

Item no: 4170937EAN: 4006825660876

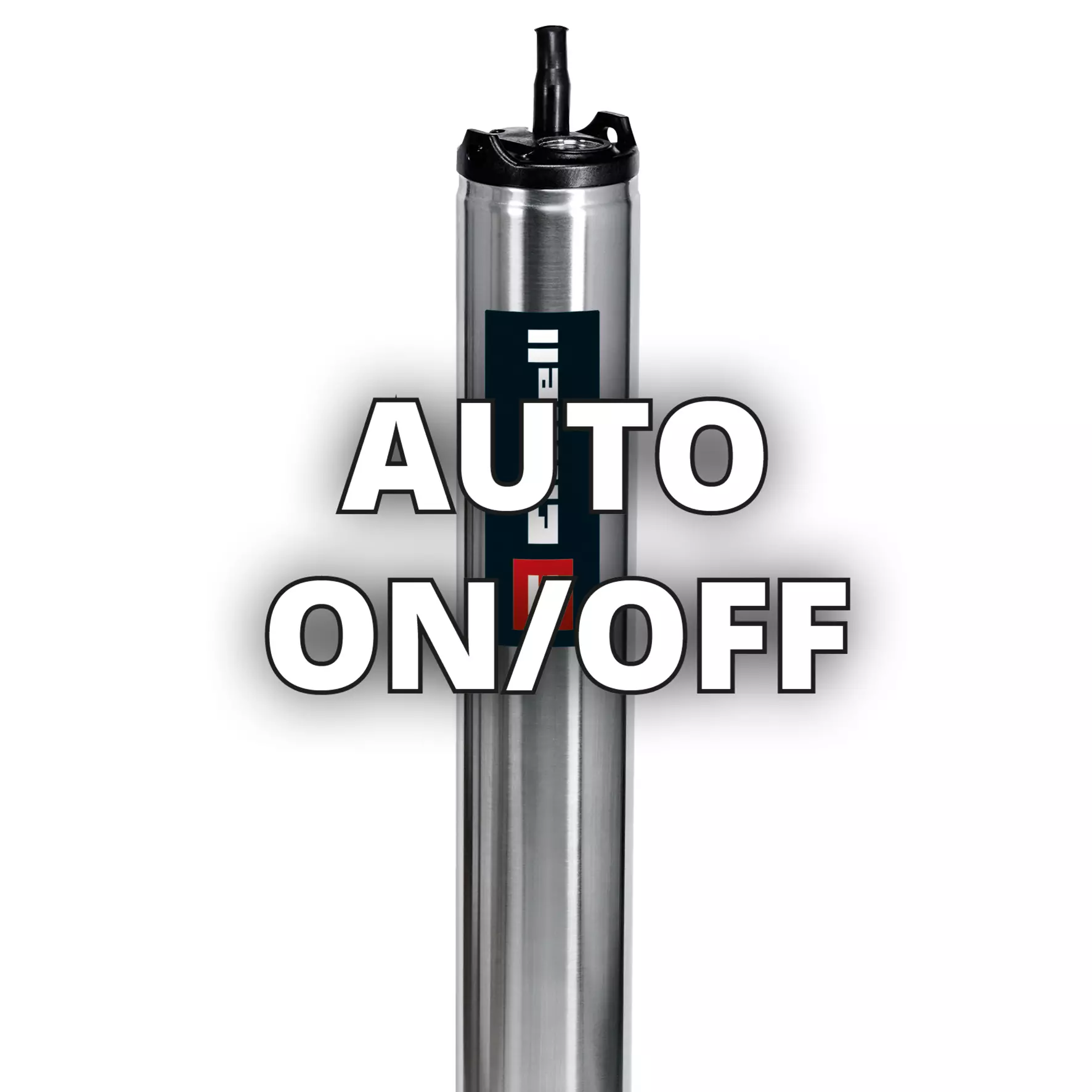

  • Automatic function
  • Dry running protection
  • Robust pressure connector with stainless steel insert
  • Pump housing made of rust-proof high-grade steel
  • Multi-stage pump wheels for high working pressure
  • With integrated non-return valve
  • High-quality mechanical seal for a long service life

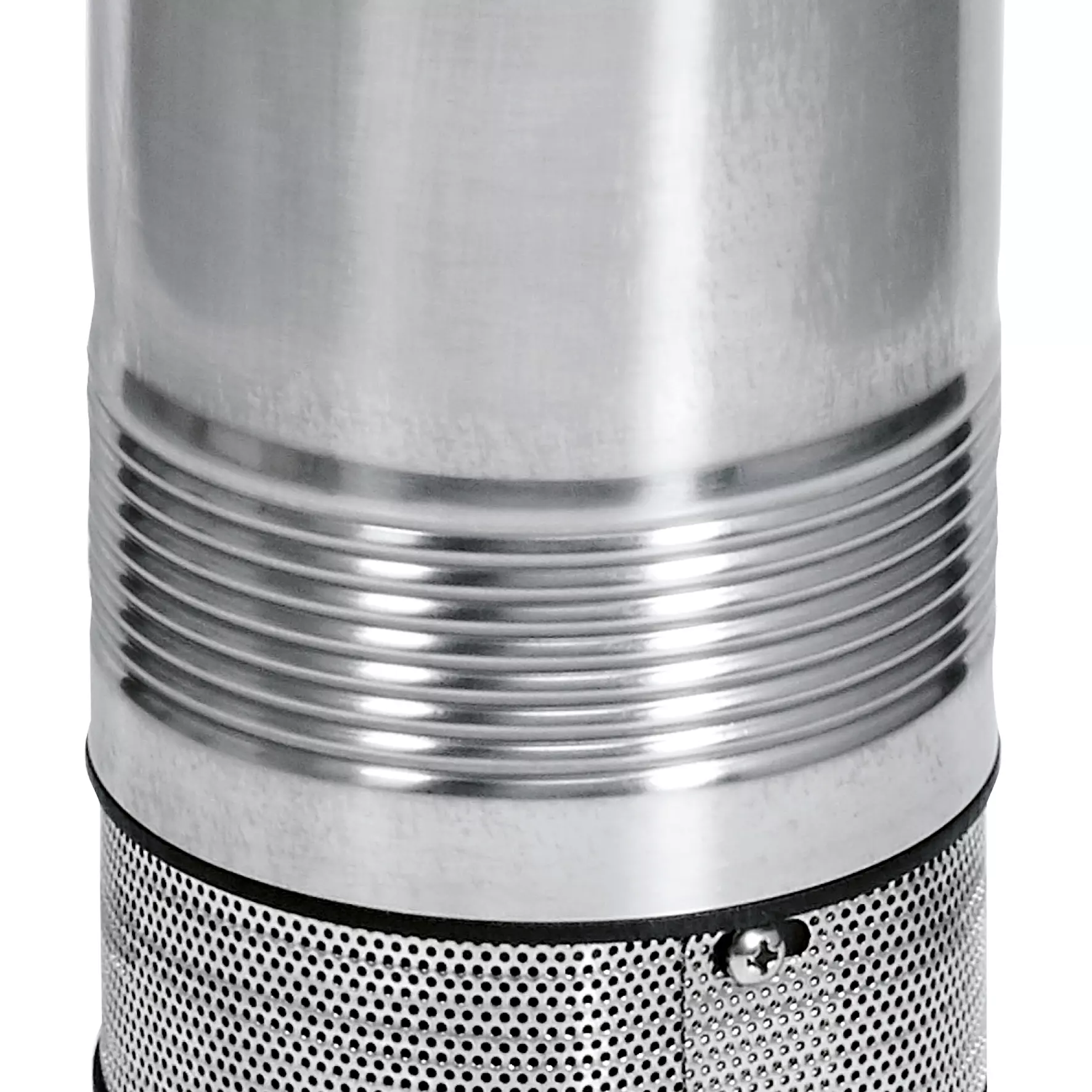

  • Stainless steel dirt sieve
  • Easily reachable hose connection on the pump's topside
  • 2 suspension eyelets
  • 22 m rope
See more information
productimage
Article description

The Einhell GE-DW 1155 N-A deep well pump with automatic function switches the device on automatically when water is required and switches it off again automatically if the withdrawal of the water is interrupted. The pump has an 8-stage impeller system to generate the pressure required for pumping clean water from deeper lying water reservoirs and wells up to a maximum height of 55 m. Thanks to the automatic function and the high delivery pressure, this pump is ideally suitable for garden watering systems and for domestic water supplies, especially for toilet flushing systems, washing machines or even washing the car. Its compact and slimline design makes it suitable for use in constricted pipes as well. The maximum immersion depth is 19 meters and for flexible use the pump has a 22 meter power cable and a holding rope included with it. With a powerful 1100 W motor the pump generates a maximum delivery rate of up to 6,000 liters per hour. The submersible pressure pump not only gives a solid impression on the outside, it is particularly robust in design and has important safety features. The housing and dirt screen made of rust-proof stainless steel, the pressure connector with stainless steel insert and the mechanical seal provide the basis for a long service life. The integrated dry-run safeguard protects the pump against damage if the water supply is interrupted. The hose connection, with a size of 33.3 mm (1" male thread), is easily accessible on the top of the pump. The integrated non-return valve here prevents the water flowing back.

Technical details

Mains supply220-240 V | 50 Hz
Power1100 W
Max. delivery capacity6000 L/h
Max. delivery height55 m
Max. immersion depth19 m
Max. water temperature35 °C
Max. size of foreign particles0 mm
Hose connection33,3mm (G1 IG)
Power cord22 m | H07RN-F
Pump diameter98 mm
8-speed pump drive

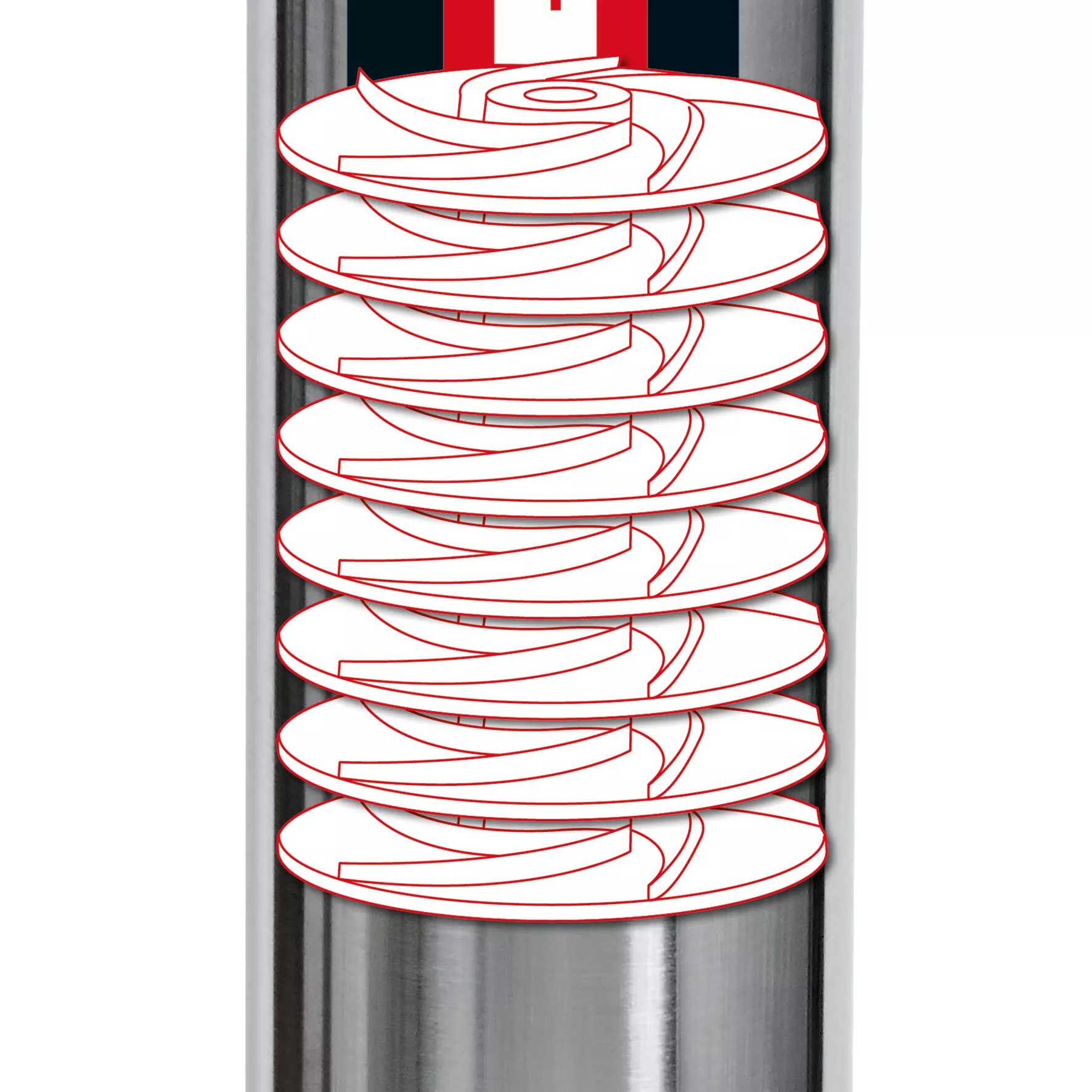

8-speed pump drive

With 8 impellers, the multi-stage pump drive pumps up to 6000 litres per hour with up to 5.5 bar maximum pressure.

Robust stainless steel

Robust stainless steel

Both the housing of the pump and the threaded connections are made of robust stainless steel.

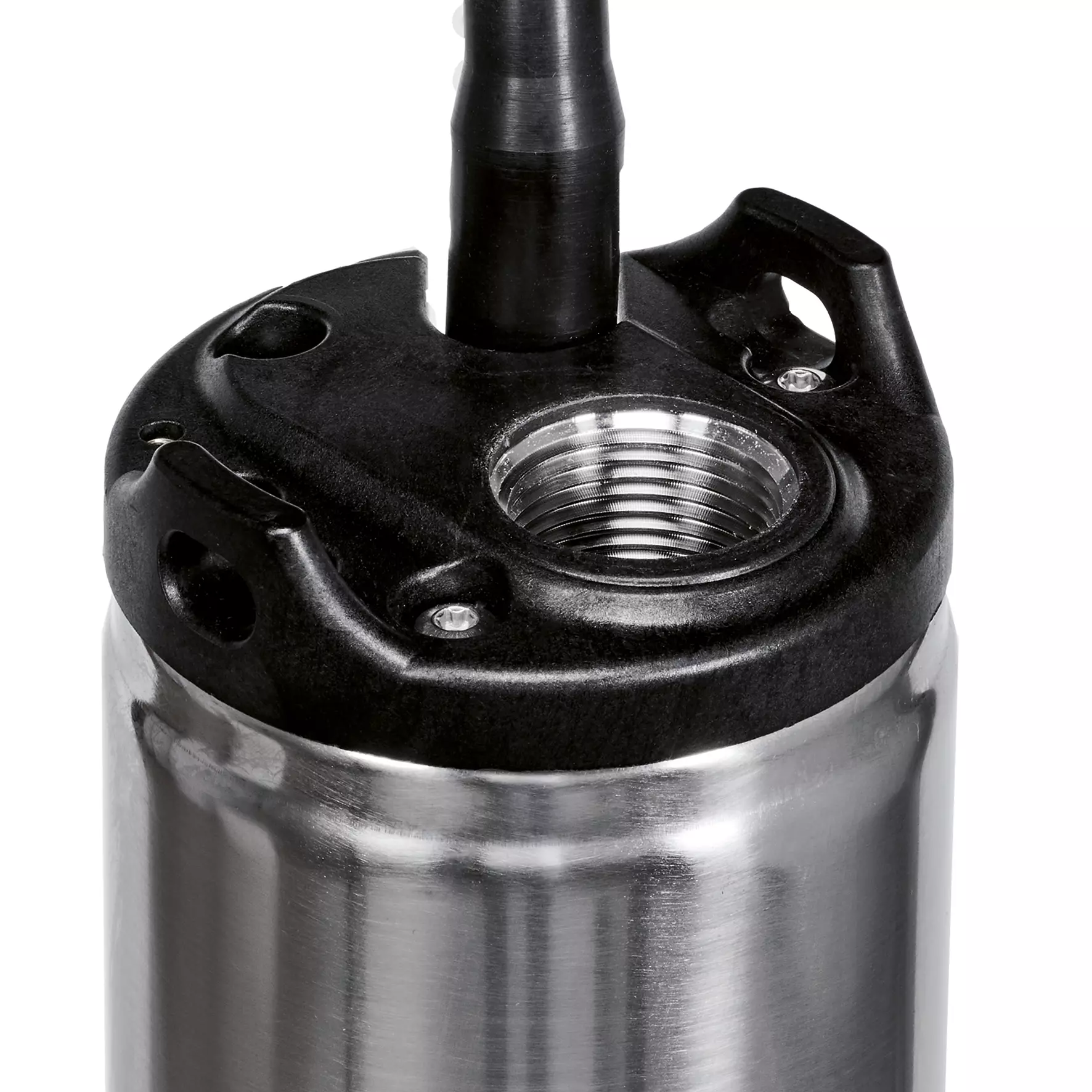

Accessible connection

Accessible connection

The hose connection is easily accessible on the top of the pump's stainless steel housing.

Dry-run protection

Dry-run protection

The pump switches on and off automatically, and is also protected by dry-run protection.

Robust stainless steel pump

Slim, powerful deep well pump for clear water supply

The Einhell deep well pump GE-DW 1155 N-A is a 1,100 W clear water pump with stainless steel housing and, with a max. delivery height of 55 m, it is suitable for use in lower and narrow water reservoirs and wells. The powerful pump delivers up to 6000 litres of water per hour at 5.5 bar and is therefore also ideally suited for supplying water sprinklers.

Robust stainless steel pump
